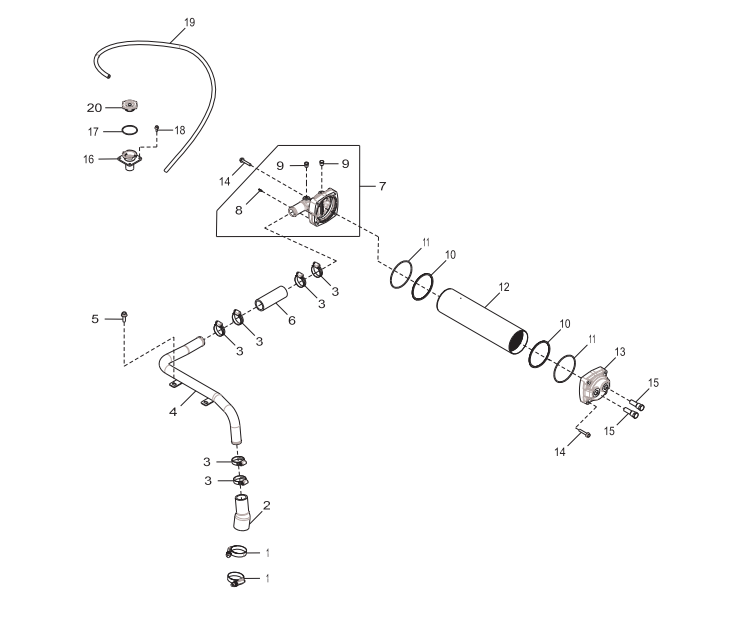

Group 27: Heat Exchanger, continued 第27組：熱交換器，“GM93289,”“GM93285,”“GM91650,”“GM85414,”“GM85412,”“GM85410,”“GM51613,&rdquo

Item Part Description Quantity Variation Number 2765 1 GM88773 Clamp 2 2 GM88705 Hose 1 3 GM18882 Clamp 6 4 GM88753 Tube 1 5 # Screw, Hex Cap M10 X 30mm 2 6 GM88711 Hose 1 7 GM88765 Cover 1 8 GM88781 Spring Pin 1 9 352023 Drain Plug 2 10 GM88774 O-Ring 2 11 GM88172 O-Ring 2 12 GM88752 Core 1 13 GM88697 Cover 1 14 # Screw, M8 X 45 8 15 352142 Zinc Anode 2 16 352112 Filler Neck 1 17 GM88675 O-Ring 1 18 # Screw, M6 X 16 4 19 352081 Tube 1 20 GM88674 Filler Cap 1
